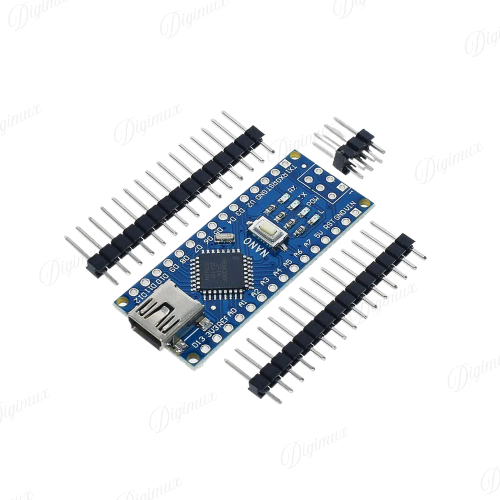

Arduino Nano V3
Arduino Nano V3 is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3). Arduino Nano board has more or less the same functionality as the Arduino UNO but in a ... read more
Description
Arduino Nano V3 is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3). Arduino Nano board has more or less the same functionality as the Arduino UNO but in a different package. Arduino Nano programming module lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.
Specifications of Nano V3 :
- Microcontroller: ATmega328 (Arduino nano).
- Operating Voltage (logic level): l5 V.
- Input Voltage (recommended): 7-12 V.
- Input Voltage (limits): 6-20 V.
- Digital I/O Pins: 14 (of which 6 provide PWM output).
- Analog Input Pins: 8.
- DC Current per I/O Pin: 40 mA.
- Flash Memory: 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB is used by the boot loader.
- SRAM: 1 KB (ATmega168) or 2 KB (ATmega328).
- EEPROM: 512 bytes (ATmega168) or 1 KB (ATmega328).
- Clock Speed: 16 MHz.
- Dimensions: 0.73″ x 1.70″.
- Length: 45 mm.
- Width: 18 mm.
- Weight: 5 g.
Features of Arduino Nano V3;
- Automatic reset during program download
- Power OK blue LED
- Green (TX), red (RX), and orange (L) LED
- Auto-sensing/switching power input
- Small mini-B USB for programming and serial monitor
- ICSP header for direct program download
- Standard 0.1” spacing DIP (breadboard friendly)
- Manual reset switch
Related Documents:
Package Includes:
-
1 x Arduino Nano V3 Arduino Nano
