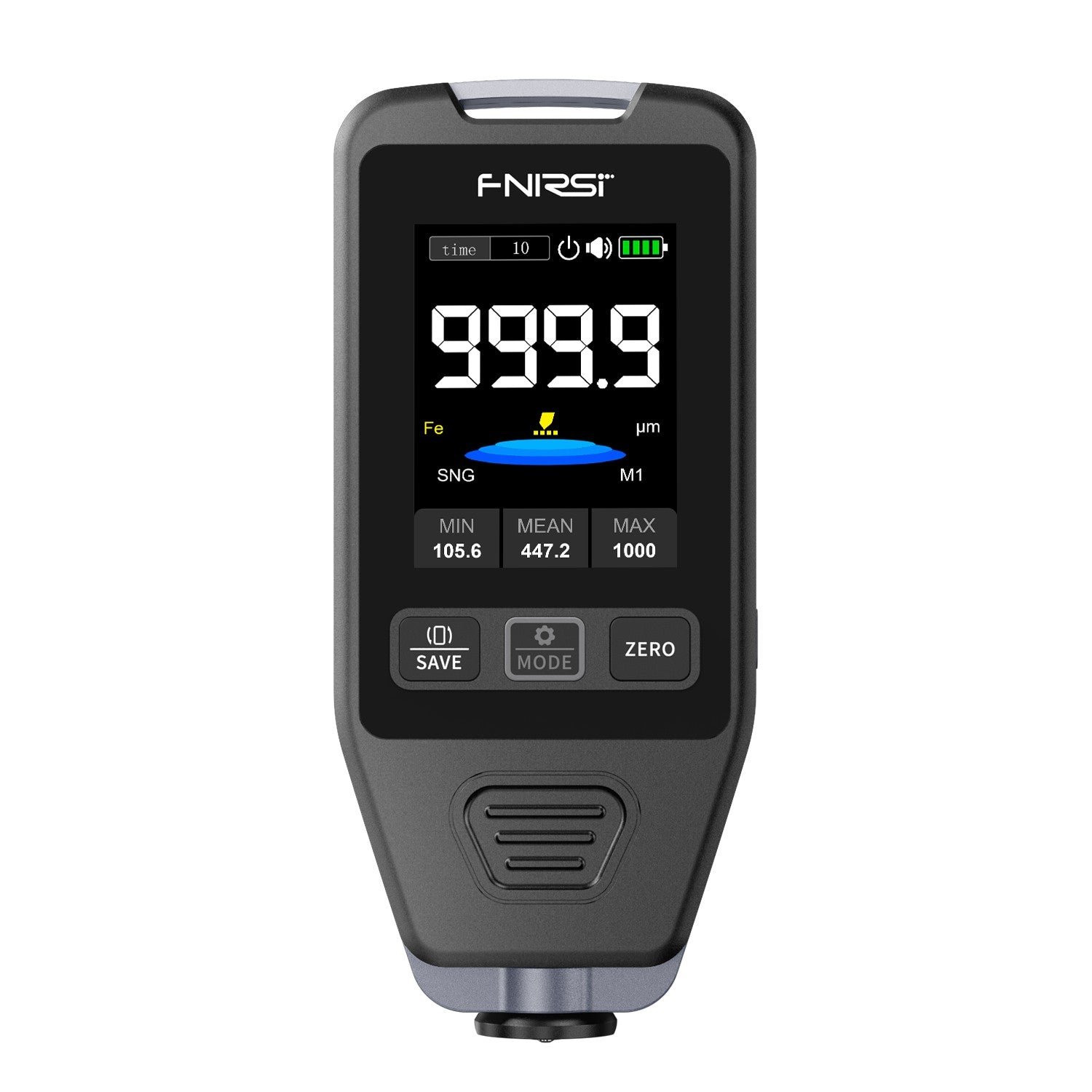

FNIRSI® CTG-20 Car Paint Coating Thickness Gauge
¥34.99
CTG-20 is a coating thickness gauge used to measure the thickness of electroplated coatings or coatings on metal surfaces. It has the ability to measure the thickness of non magnetic coating (such as ... read more
Description
CTG-20 is a coating thickness gauge used to measure the thickness of electroplated coatings or coatings on metal surfaces. It has the ability to measure the thickness of non magnetic coating (such as paint) on magnetic materials such as steel/iron, as well as the thickness of coating (such as paint) on non magnetic materials such as aluminum. Built in precision probe, lithium battery charging. Automatically detect substrate properties and detect coating thickness through electromagnetic induction and eddy current effects. This instrument can non-destructive measure the thickness of the coating, with fast speed and high accuracy. Widely used in manufacturing, chemical industry, automotive and other testing fields.
Please Note:
·The curvature of the substrate to be tested is too steep.
·The area of the substrate to be tested is too small.
·The surface of the substrate to be tested is rough.
·There is a strong magnetic field nearby.
·The ambient temperature/humidity changes significantly.
·Insufficient battery, please charge in time.
·The area of the substrate to be tested is too small.
·The surface of the substrate to be tested is rough.
·There is a strong magnetic field nearby.
·The ambient temperature/humidity changes significantly.
·Insufficient battery, please charge in time.
Specifications
Brand
FNIRSI
Model
CTG-20
Measuring Range
0-1400μm
Accuracy
±3% + 2μm
Resolution Ratio
0.1μm
Calibration
Zero point calibration
Multi-point calibration
Multi-point calibration
Unit
μm / mil
Mini Convex Curvature Radius
5mm
Mini Concave Curvature Radius
25mm
Mini Measurement Area Diameter
20mm
Work Environment
No strong magnetic field
Work Temperature
-10℃ ~ +50℃
Humidity
20% – 90% RH
Battery
600mAh Lithium battery
Size
115 x 48 x 18mm
Weight
About 83g
Data Storage
Support
Putty Powder Test
Support
Rotatable Screen
Support
Auto Power Off
Support
