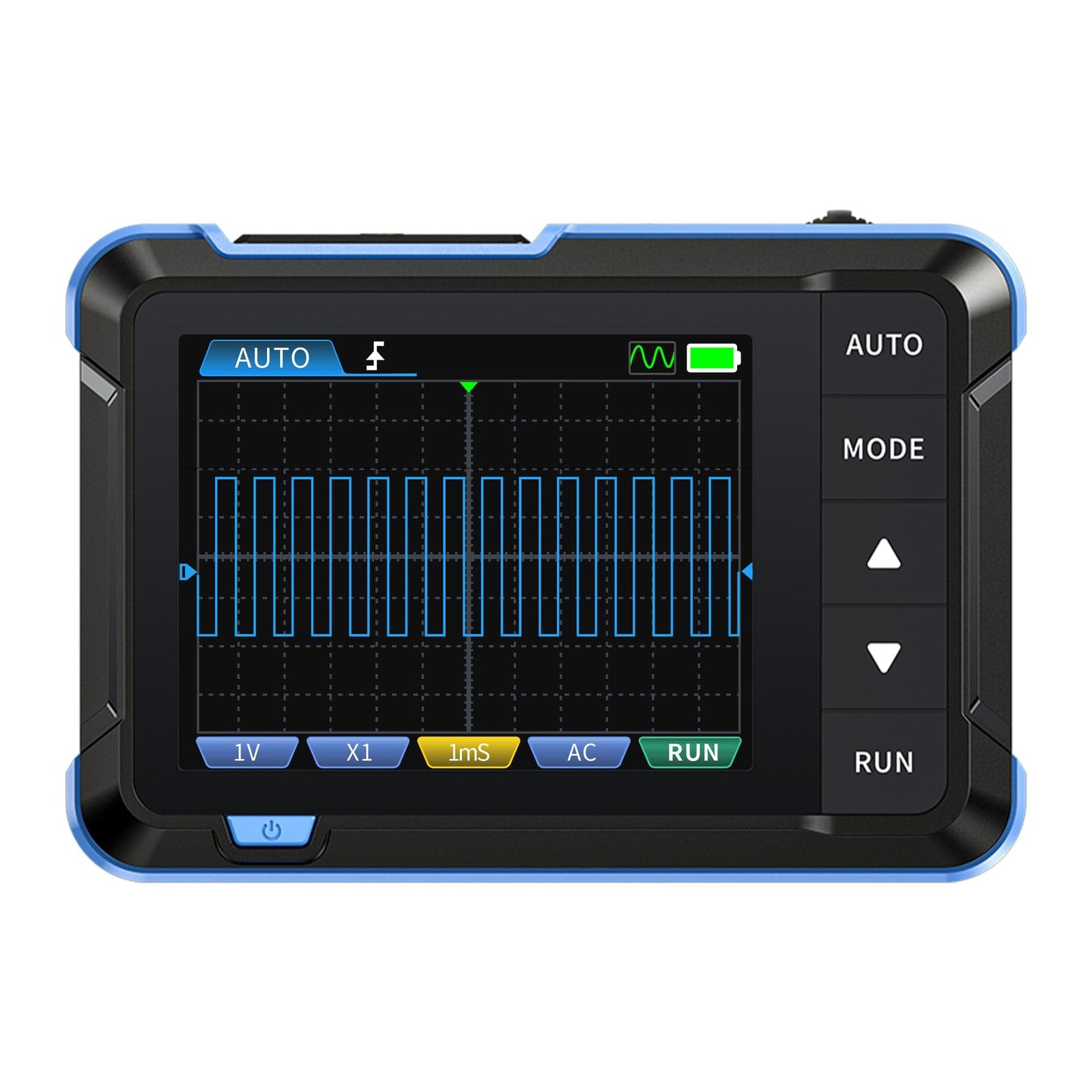

FNIRSI® DSO-153 2-IN-1 Mini Digital Oscilloscope Waveform Generator
¥35.99
The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use. It offers a well-rounded feature set suitable for general signal testing. This... read more
Description
The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use. It offers a well-rounded feature set suitable for general signal testing. This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure up to ±400V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments. Additionally, it features a function signal generator capable of outputting 14 types of signals (10KHz). Equipped with a 2.8-inch 320*240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.
Features
- Portable 2.8″ TFT Handheld Oscilloscope for beginners, hobbyist
- DSO oscilloscope: 5MS/s, 1MHz bandwidth, ±400V voltage range.
- Signal Generator: 10KHz
- High-definition 320*240 LCD, Type-C interface.
- Finished assembly, lightweight, perfect for maintenance.
- Versatile trigger functions: single, normal, automatic.
- Signal Type Support: Periodic analog signals and non-periodic digital signals.
- 8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean.
- One-Click AUTO Mode: Effortlessly display waveforms with minimal input.
- Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
- Recommended Use: Suitable for routine equipment maintenance and educational signal demonstrations.
* Basic Parameters *
Brand
FNIRSI
Model
DSO-153
Display
2.8 Inches / PPI:320*240
USB Charging
5V/1A
Lithium Battery Capacity
1000mAh
Size
99×68.3×19.5mm
Weight
100g
* Mini Oscilloscope *
Channel
1
Sampling Rate
5MS/s
Bandwidth
1MHz
Vertical Sensitivity
10mV/Div-20V/Div (Progress according to the 1-2-5 way)
Time Base Range
500ns/Div-20s/Div (Progress according to the 1-2-5 way)
Voltage Range
X1:±40V (Vpp:80V)
X10:±400V (Vpp:800V)
X10:±400V (Vpp:800V)
Trigger Mode
Auto / Normal / Single
Trigger Edge
Rising edge / Falling edge
Coupling
AC/DC
* Signal Generator *
Frequency
0-10KHz
Duty Cycle
0-100% (rectangular and sawtooth waves)
Amplitude
0.1-3.3V
Waveforms
Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave.
◈ The size and weight are both manually measured, with slight errors, please refer to the actual product for accuracy.
Additional information
| Style | With P6100 Probe |
|---|
