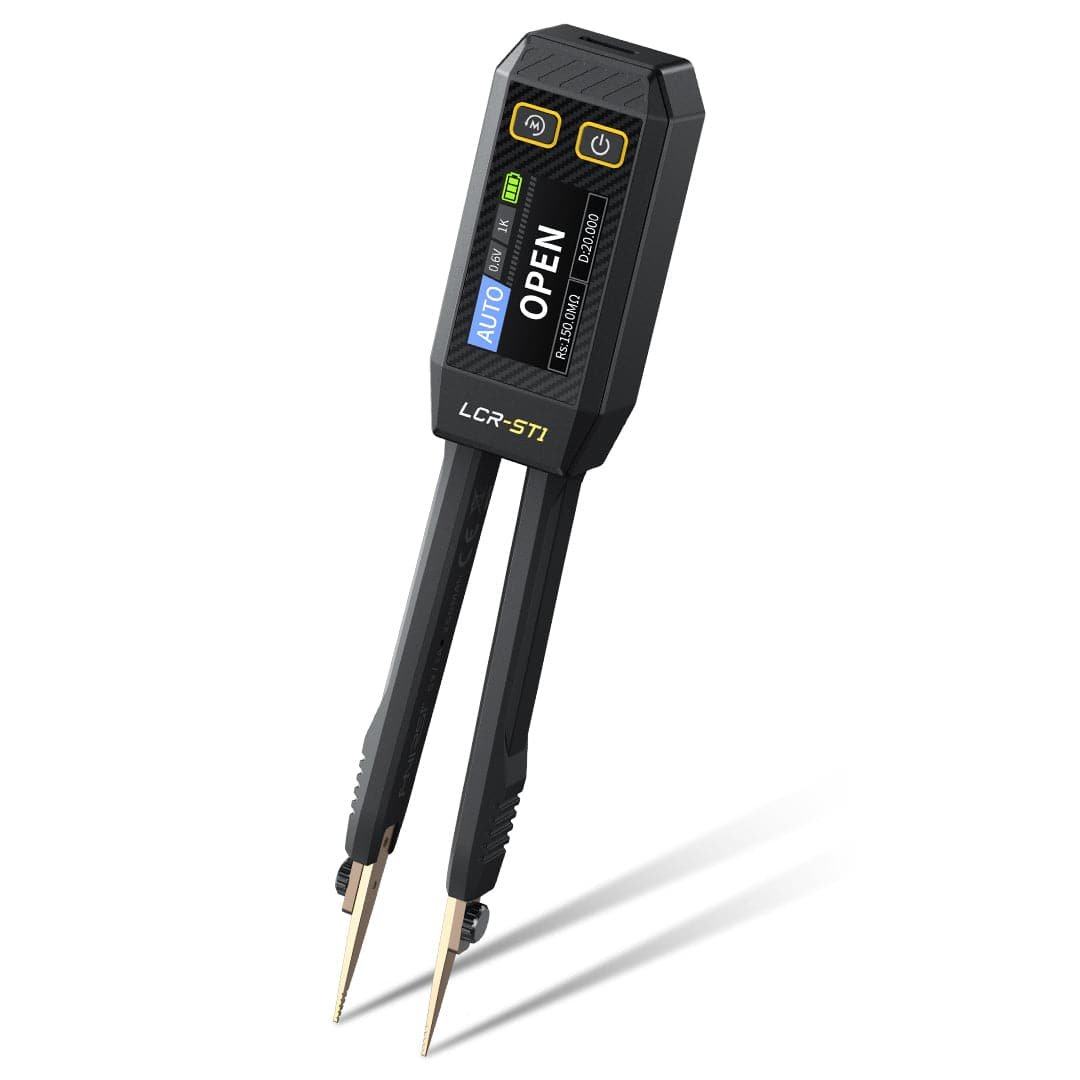

FNIRSI® LCR-ST1 Mini Smart Digital Tweezer LCR SMD ESR Tester
¥26.99
The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, induc... read more
Description
The LCR-ST1, our company’s latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, inductance, diodes and Continuity.
This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels
The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.
Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don’t miss out on this excellent tool that combines functionality and portability!
Specifications
Brand
FNIRSI
Model
LCR-ST1
Capacitance Range
1pF-22mF
Inductance Range
1μh-10H
Resistance Range
10mΩ-10MΩ
Diode
On voltage 0.7V
Frequency Test
100Hz, 1kHz, 10KHz
Level Test
0.3V, 0.6V RMS
Parameter Display
ESR, D value, Q value, Z value, X value
Display
1.14″ color screen
Charging Interface
Type-C, 5V/A
Power Supply
250mAh lithium battery
Auto Recognition Measurement
Support
Replaceable Tweezer Head
Support
Auto Shutdown
Support
Data Hold
Support
History Record
Connect to PC to view and export
Language
English, Chinese
Size
28x19x150mm
Weight
41g
